EMERGENCY ESCAPE BREATHING APPARATUS (EEBA) SK 1203 C
SPECIFICATIONS
TECHNICAL DATA:
Valve/Pressure Reducer: provided with gauge for the continuous reading of the cylinder charge
Volume/Cylinder Working Pressure: 2 l/300 bar
Air reserve : 550N litres
Flow : about 35 l/min
Autonomy : more than 15 minutes

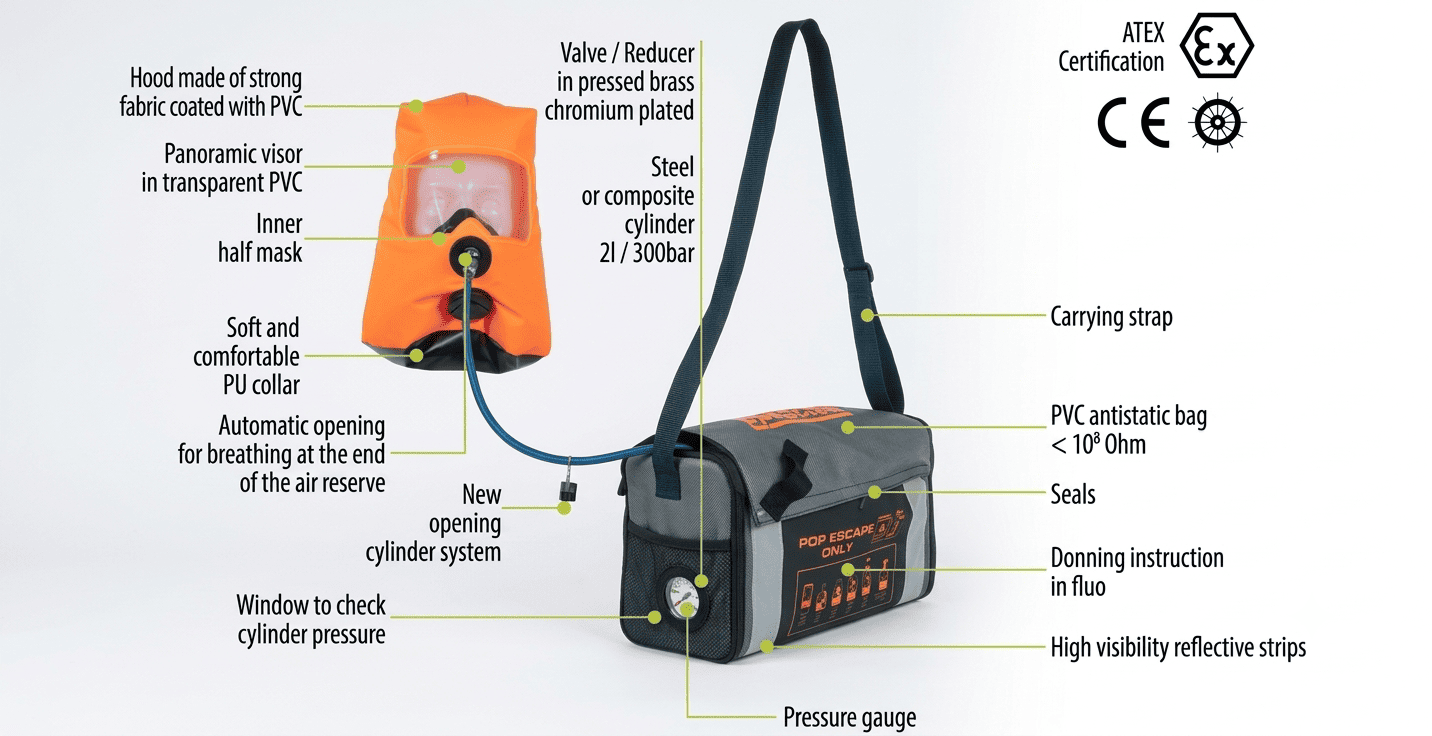

MATERIALS
Hood:
– Hood body : Strong fabric PVC spread
– Panoramic Visor : PVC transparent
– Collar : PU
– Inner mark : Silicone
Bag : Anti-static PVC coated fabric
Valve/Reducer : Chrome plated brass
Cylinder : Composite (Carbon fibers)
STORAGE: Recommended storage temperature -20°C and +50°C and with relative humidity below 80%.
WEIGHT: 3.5 Kg approx., set complete with fully charged cylinder.
DIMENSIONS: 500x240x200mm
Complies with the provisions of the Regulation 2016/425/EU as IIId category PPE and of the Directives MED 2014/90/EU as marine equipment and PED 2014/68/EU as pressure assembly.
Certified as a class 15 minutes device to EN 1146:2005 and ISO 23269-1:2008.
Voluntary ATEX certification, as a non-electric equipment intended for use in a potentially explosive atmosphere (Zones 0-20), according to Directive 2014/34 / EU.
