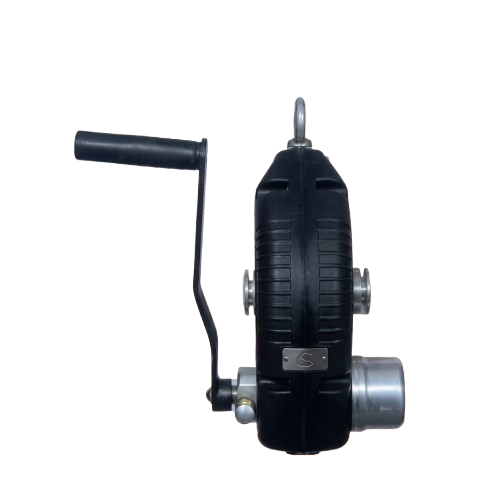

RETRACTABLE BLOCK WITH RETRIEVAL SYSTEM REF: IS-RFA-10R
DESIGN
- The locking pin on the side of the casing at the base of the handle allows this dual system to work in independent Fall Arrest & Winch modes.
- Can be easily mounted on the leg of Tripod SF-TP-800 using specialized brackets.
- The Dual mode – helps easy movement of user while working in confined spaces.
- Retractable mode – enables easy mount of user in confined spaces.
- Winch mode – enables easy retrieval.
LENGTH
LENGTH: 10 mtr.
CABLE
MATERIAL: Galvanized steel wire rope 4.8 mm.
MINIMUM BREAKING STRENGTH: 12 KN
WEIGHT
SF-RFA-10R: 8.850 kg ± 0.100 kg
SF-RFA-15R: 9.100 kg ± 0.100 kg
SF-RFA-20R: 9.500 kg ± 0.100 kg
USER CAPACITY
USER CAPACITY: 100 kg Max.
RELEVANT STANDARD
- Meets or Exceeds EN 360 : 2002 & EN 1496:2017 CLASS B
